No lift hill required. A new patent from Disney Enterprises, Inc. describes an elevation change illusion that makes a flat ride track feel like it’s climbing or dropping — and the timing lines up closely with the Encanto ride now in development for Disney’s Animal Kingdom.
The Disney elevation illusion patent, titled “Elevation Change Illusion Through Set Design,” was filed February 10, 2025 and published August 13, 2026.
Here’s how the trick works and where it might turn up.
Quick Summary
- The patent is titled “Elevation Change Illusion Through Set Design”
- Imagineer Daniel Joseph is lead inventor, with Jessica Klouda, Martha Gutierrez Navarro, and Jason Monahan
- The core version needs no moving parts and no screens — just angled walls and stairs
- It creates a second vanishing point above or below the track’s actual one
- The patent gives 15 degrees as a sample angle, with a 10 to 20 degree range
- It solves a genuine cost problem for multi-level attractions in flat buildings
How the Illusion Works
The core version of this trick needs no moving parts and no screens at all — just angled walls and stairs.
The patent also leaves room for more, describing optional add-ons like video projection and set pieces that shift or change dimension as the vehicle passes, layered on top of the static illusion for a stronger effect.
The Two Vanishing Points
Here’s the mechanism, and it’s elegant.
Your eyes naturally create a vanishing point based on where the track itself leads. The set pieces next to the track create a second vanishing point, positioned above or below the first.
That gap between the two points is what tricks your brain into sensing you’re gaining or losing height, even on a level track.
Your visual system resolves conflicting depth cues by splitting the difference. Give it a floor that says “level” and walls that say “rising,” and it concludes the vehicle is climbing.
The Specifics
The patent breaks the trick into a few parts:
- The track stays flat, at a fixed angle along your direction of travel
- Set elements next to the track sit at a non-perpendicular angle to that travel direction
- Parts that would normally be horizontal — floors, window ledges — get built at a slight angle instead
- Parts that would normally be vertical — posts, stair risers — tilt away from vertical too

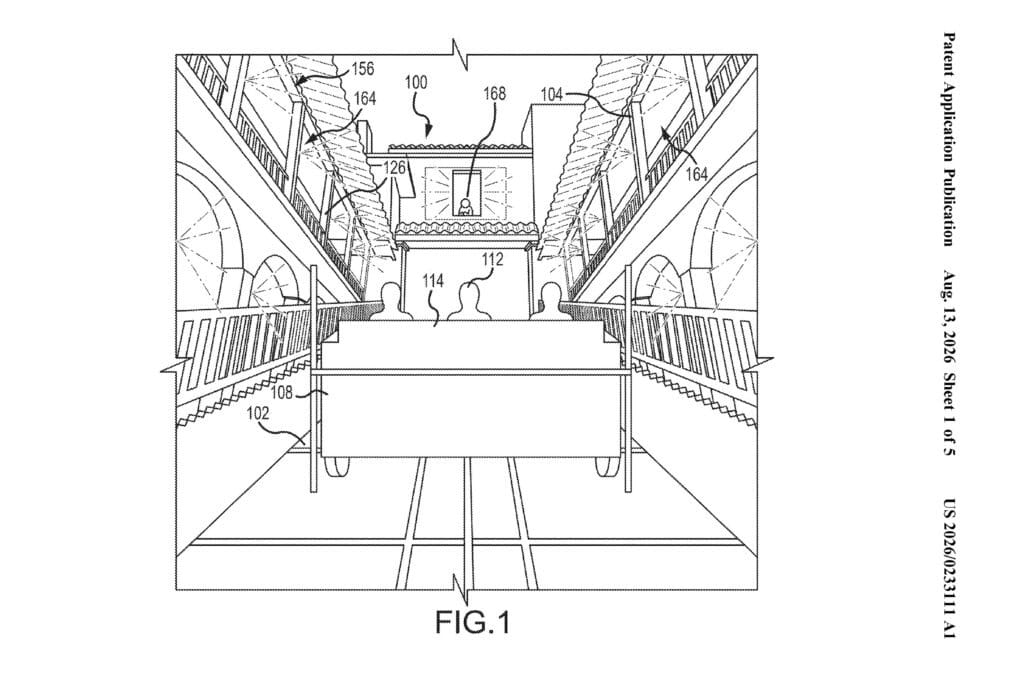

A building facade with two stories is one example in the filing. Build it leaning toward the track, and as you pass, the stories appear to stack upward. You read that as the ride vehicle climbing from the first floor to the second, even though the vehicle stays level the whole time.
The Supporting Tricks
The patent adds several touches to sell the effect:
- A focal point, like a lit prop, pulls your eyes forward and away from the tilted walls beside you
- Painting or lighting that fades along the length of the track can stretch your sense of distance
- A repeating pattern of stairs or balusters that changes spacing along the track can make a short stretch feel longer than it is
The patent gives 15 degrees as a sample angle, with a stated range of 10 to 20 degrees off the actual travel direction.
That range is the practical detail. Under 10 degrees and the effect is too subtle to register. Over 20 and guests start noticing the walls are crooked rather than perceiving movement.
Why This Solves a Real Problem
This kind of trick addresses a genuine cost issue.
Building a multi-story attraction inside a building that’s actually flat, or fitting a new level into an existing show building, gets expensive fast if you need a real elevation change.
Real elevation means lift hills, ramps, or vertical lift systems — all of which require taller buildings, more structural steel, more mechanical systems, and more maintenance. They also consume enormous amounts of floor space, because a ramp gentle enough for a ride vehicle takes distance to climb.
A set design illusion gets a similar effect for a lot less. No mechanism, no maintenance, no additional building height.
This is Imagineering doing what it has always done best — solving a physical problem with a perceptual trick rather than an engineering one. Forced perspective on Cinderella Castle and Main Street is the same instinct applied to architecture.
Where It Might Show Up
The timing stands out, since several projects in development could use exactly this approach:
- Disney’s Animal Kingdom is adding attractions themed to Encanto and Indiana Jones
- Magic Kingdom’s villains-themed land will likely have a dark ride where this kind of illusion could work well
The Encanto connection is the most suggestive. Casa Madrigal is a multi-story house, and the film’s entire visual identity depends on movement through a building that has more inside than its exterior suggests.
A ride through Casa Madrigal that appears to travel between floors — without a lift system — would be a natural application, and construction is well underway with rockwork framework now visible on the show building.
Caution on reading too much in. A patent filing is not a confirmation of use. Disney files patents constantly and most never appear in an attraction. The filing date of February 2025 and the projects in development align suggestively, but that’s inference.
The Bottom Line
The Disney elevation illusion patent describes a set design technique that makes flat ride track feel like it’s rising or falling, using angled walls, tilted stairs, and a second vanishing point positioned above or below the track’s actual one.
Imagineer Daniel Joseph is lead inventor, with the filing dated February 10, 2025 and published August 13, 2026. The sample angle is 15 degrees, within a 10 to 20 degree range.
With multiple new attractions under construction at Walt Disney World, don’t be surprised if this shows up in one of them sooner rather than later.
